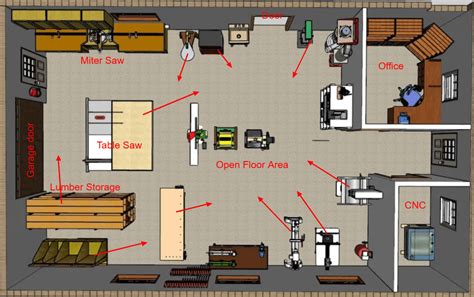

What is a good workshop layout
Honestly, a good workshop layout is less about cramming everything into your garage and more about how you move. It's the way you set up your tools, benches, and storage so your work actually flows – not just physically but mentally too. You don't want to be walking back and forth, tripping over stuff, or hunting for a wrench for twenty minutes. Every inch should earn its keep, even in a tiny shed.
What are the core principles of an efficient workshop layout?
Three things really make or break a shop: how you work, staying safe, and being able to reach stuff. Workflow is the big one – think of it like a path. In a woodshop, you start at the lumber pile, move to the saw, then the assembly table, and finally the corner where you finish things. That path should be a straight line, not a tangled mess. Safety just means keeping walkways open and giving yourself room to actually use the tools without whacking your elbow. And accessibility? Keep your go-to tools close, shove the stuff you use once a year up high.
How do you define workflow zones in a workshop?
Zones are the trick. You split your shop into little neighborhoods – storage, cutting, assembly, finishing. The cutting zone is for the big saws, assembly is for clamps and glue, finishing is for paint and stains. Keep finishing away from cutting, or you'll get dust stuck in wet paint forever. For metalworking, you might have a welding zone, a grinding zone, a machining zone. Grouping similar stuff together just makes sense – contains the mess and the noise.
What is the ideal layout for a small workshop?
If you're cramped, a U-shape or L-shape is your best friend. You put your main machine – maybe a table saw – in the middle of the U, with benches along the walls. This way you can spin around and do everything without walking far. Another trick is the "wall-based" layout where everything's on wheels. You roll out the tools for a project, then push them back to get floor space for assembly. It's messy but it works.
How does lighting affect workshop layout?
Lighting is one of those things nobody thinks about until they're squinting at a cut. You need both ambient light – like bright LED shop lights on the ceiling – and task light right over your workbench or machine. A killer mistake? Putting a bench against a wall so your own shadow falls on what you're doing. Put the bench in the middle or under a skylight. For fine work, have a lamp you can move around. It's a small thing that changes everything.
What are the most common mistakes in workshop layout?
People screw up the same ways over and over. First, shoving the table saw into a corner – then you can't feed long boards. Second, having a dead-end aisle where you have to back out like you're parking a car. Third, forgetting dust collection entirely. You need to plan for the hoses and ducts before you build walls. If the dust collector's too far away, you'll trip over hoses and they'll get in the way.
Data Table: Workshop Layout Configurations
| Layout Type | Best For | Key Advantage | Key Disadvantage |
|---|---|---|---|
| U-Shaped | Small to medium shops | Minimizes walking distance | Can feel cramped if not planned |
| L-Shaped | Corner spaces | Good for long stock feeding | Wastes corner space |
| Linear (One Wall) | Very narrow shops | Simple and easy to organize | Long walking distances |
| Island Layout | Large professional shops | Excellent workflow and access | Requires large floor area |
Checklist for a Good Workshop Layout
- Map out a clear path from where materials come in to where finished stuff goes out.
- Put your most-used tool – probably the table saw or workbench – in the center of the room.
- Give yourself at least 36 inches of clearance around every machine.
- Set up lighting so there are no shadows on your work surfaces.
- Think about dust collection ductwork before you even build walls or shelves.
- Use pegboards or French cleats for hand tools you grab every day.
- Make a separate little station for sharpening or maintenance.
- Keep the finishing zone far from the cutting zone.
- Label every single storage bin and drawer.
- Test your layout with cardboard cutouts of big machines before you commit.
Frequently Asked Questions (FAQ)
Should I mount my workbench to the wall?
I wouldn't if you're doing heavy work. A freestanding bench in the middle lets you use all four sides and is way more stable for clamping. If you're just soldering or using a computer, wall-mounting's fine for tight spaces. But for real work, go freestanding.
How much space do I need between a table saw and a workbench?
You need at least 48 inches on the infeed and outfeed sides of the saw to handle long boards safely. Between the saw and a parallel bench, 36 inches is the absolute bare minimum. But 48 is better so someone can walk behind you without getting smacked.
Is a concrete floor bad for a workshop?
Concrete is tough but it's hell on tools and your feet. Dropping a chisel can chip it. Put anti-fatigue mats in front of benches and machines. Epoxy coating seals it and makes cleanup easier. Wood or rubber is more comfortable but costs more.
Should I put my drill press on a mobile base?
Yeah, unless you've got a dedicated spot. Drill presses are for precision holes but you don't use them every day. A mobile base lets you tuck it away and roll it out when you need to drill long stuff. Saves floor space.
Short Summary
- Workflow is King: A good layout follows a logical sequence from raw material storage to finishing.
- Safety First: Keep 36-48 inches of clearance around machinery and plan for dust collection.
- Zone Your Space: Separate cutting, assembly, and finishing areas to reduce contamination and improve focus.
- Test Before Building: Use cardboard or tape to simulate the layout on the floor before committing to a final design.
